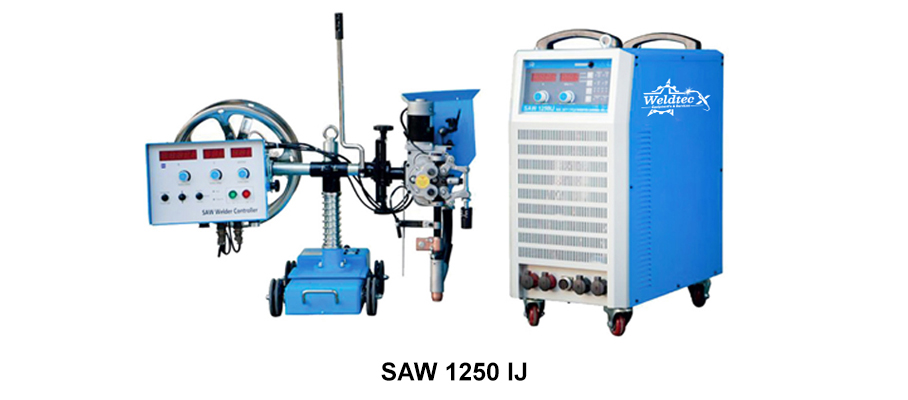

SAW HEAVY DUTY SERIES (IGBT) INVERTER DC WELDER

Product Description:

• Advanced IGBT contra variant technology.
• The arc current, the thrust current can be adjusted continuously, the welding stability, the weld forming is beautiful, can weld carbon steel, stainless steel, heat resistant steel and composite steel plate.
• The arc of the arc of the arc welding and the arc of the arc, the high success rate of the arc.
• The reverse frequency is 20 KHz, light weight, small volume, easy to move.
• It is easy to operate in a two-wheel drive, flexible wire, which ensures the steady and reliable delivery of the silk Automatic back-pumping circuit.
• A protective circuit that is fully developed.
• The noil arc pressure compensation feature makes the welding work at its best.
• The noil current output, the arc stabilization, the welding quality is more assures.
• The multi-function manual arc welding, submerged arc welding and carbon arc gouging.
• Be able to work as SAW, MMA and gouging.
• Temperature protection and jackscrew protection.
• Adopting soft switch technique and advanced control technique, which can preset welding parameter.
• Suitable for welding carbon steel, stainless steel, refractory steel and composite steel.
• Applicable to such industries as ship building, boiler, chemical process vessel, bridge, hosting machinery and metallurgy manufacturing.

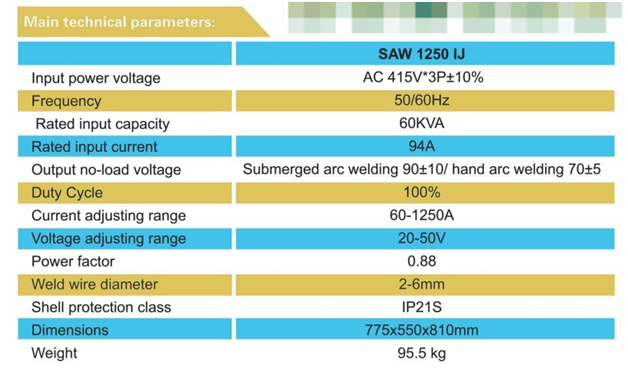

Product Description:

• Rated moving voltage DC 110V, rated moving current 0.4 A
• Rated wire feeding voltage DC 110V, rated wire feeding current 1A
• Welding speed 0.2 - 1.5 m/min
• Wire feeding speed 0.3-3 m/min
• Wire diameter $ 2.0 - $5 mm
• 15 mtr control cable, 5 mtr earthing cable
